Product Description

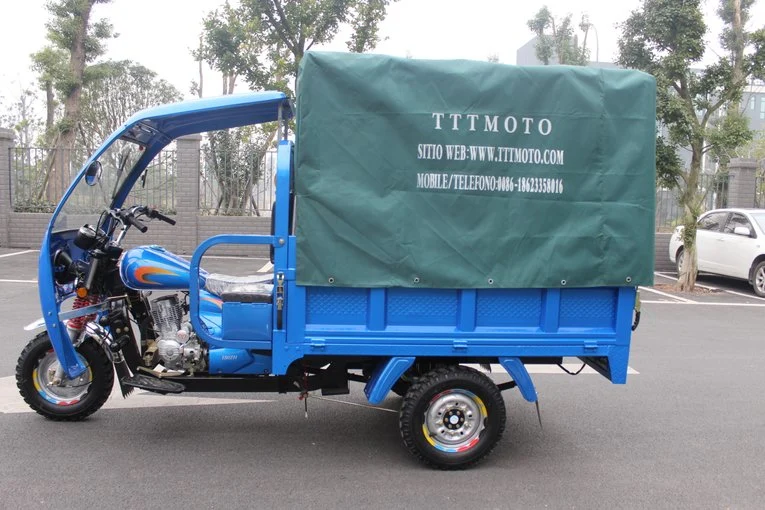

Best new 200cc 3 wheel motorcycles for sale
Technical specifications
| Chongqing Tengtian Technological Develop Co., Ltd. | ||
| Product Name | Best new 200cc 3 wheel motorcycles for sale | |
| Product Technical Specifications(General Information) | ||
| Part I Technical Design | Application | Cargo&passengers Transport |
| Design Max Speed | ≥60 km/h | |
| Loading Capacity | 300-500 kg | |
| Unladen Kerb Weight | 500-800 kg | |
| Dimension(L*W*H) | 3155x1250x1430 mm | |
| Color | Red/Green/Yellow/Black/Other colors | |
| Track | 1050 mm | |
| Wheel Base | 2100 mm | |
| Ground Clearance | 160 mm | |
| Brake Mode | Front&Back wheels, Drum | |
| Transmission Type | Shaft Drive | |
| Power | 8.0 kw | |
| Cool Type | Water Cooled | |
| Min.Fuel Consumption | 354g kw.h | |
| Fuel Type | Gasoline | |
| Fuel Tank Capacity | 12 L | |
| Part II Engine Details | Engine Type | Single cylinder,4-stroke,camshaft downward |
| Bore Stroke | 63.5×49.5mm | |
| Fuel Type | Gasoline | |
| Compression Ratio | 9.5:1 | |
| Rated Power&Rotating Speed | 8.0 kw /8000rpm | |
| Max.Torgue/Rotating Speed | 11.0N.m /6500rpm | |
| Lowest No-Load Speed Stability | 1500rpm | |
| Displacement(cc) | 156ml | |
| Ignition System | CDI | |
| Apply to | Motor tricycle | |
| Starter | Kick/Electric | |
| Part III Operation | Starting System | Electric/Kick |
| Transmission | 4 Forward &1 Reserse Gears | |
| Gearshift Control | Manual-Foot | |
| Clutch Method | Manual-Hand | |
| Brake Operate Mode | Manual-Hand or Foot | |
| Part IV Packaging | Transport | By Land/Sea/Other |
| Port Of Loading | Chongqing/Shanghai/Other ports of china | |
| Package | Protective Packaging /CKD,SKD | |
| Loading Capacity (CKD) | 14 units in 20"GP, 35Units in 40"HQ | |
| Delivery Time (from loading port) | 30-35 Days after receiving advance payment | |
| Please Note: *All sizes are approximate,any other sizes are available according to customers' special requests. *For more optional details, please contact Chongqing Tengtian Technological Develop Co., Ltd. *Any details of the motor tricycle should subject to our final confirmation before ordering. | ||
Brief Introduction
Economic and easy to use
- Humanized configuration: Motorized tricycles replaced traditional labor force transportation, more convenient and faster, save your costs both on energy and time. Especially very powerful and useful when transporting large and heavy goods and driving roads with serious condition.
- Low maintenance: With correct using, the robust and reliable body & power source of tricycles will keep health for a long time. Do not need to maintain frequently. Daily inspection and cleaning can be easy finished by yourselves in your garden or before your house door. All these require little maintenance fee.
- Wide range of application: Allows transporting grain, bullamacow, fertilizer, water, silt, coal, metals, wood, fruit, aquatic product, passengers and more, as long as you can think and you need. With one tricycle in your house, it will be your good helper both on daily life and work. Therefore it is very effective and productive.
- Ready to use: The operating system of cargo tricycle is very easy to handle, and much closer to common users. Its simplicity allows many operators to use without in-depth training.
Tricycles vary from size to color
Displayed here is a selection of some of the tricycles that we have produced in the past. This is a mere fraction of the production we have done in the past and it means to give a brief introduction to our range of capabilities and experience. If you require a tricycle you do not see here, please contact us as this is just an example of our product and we can do much more.
Pacakge & Delivery
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
Why should you choose us?
1. We Tengtian Technological offer outstanding products:
- High quality and reasonable price.
- Strong power and low engine consumption.
- Stable and durable frame for cargo tricycle.
- Electrophoresis dipping process paint, anti-corrosion ability is significant, ensure color durability.
- Super loading ability, suitable for bad or mountain roads driving.
2. Choose us Tengtian Technological, you can get:
- Professional quality control system, ensure each part with our best quality.
- Perfect production assembly line, ensure delivery on time.
- Outstanding export teamwork, ensure thorough after-sale services.
- Specialized in cargo tricycles design, manufacture and export more than 8 years, had built an excellent business reputation.
- Well know about foreign market, especially South America, Africa, Southeast Asia, and Middle East.
- "Do our best, be your best" is our aim. Your trust, we treasure.
